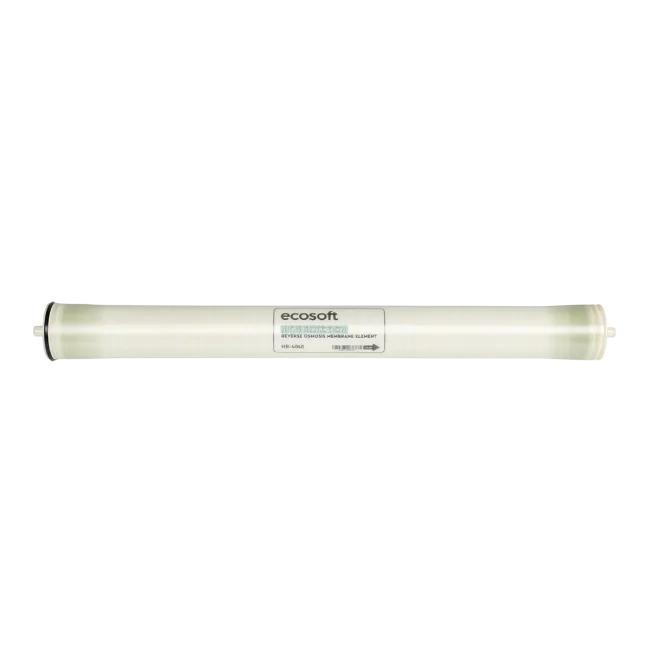

High Rejection Reverse Osmosis 4" Membrane Element - Ecosoft HR-4040
High Rejection Reverse Osmosis 4" Membrane Element - Ecosoft HR-4040
In stock
Couldn't load pickup availability
High rejection reverse osmosis membrane element Ecosoft HR-4040 is designed for 4″ commercial reverse osmosis systems that require high salt rejection with efficient operation at low pressure. It delivers permeate flow up to 11.2 m³/day and provides up to 99.3% salt rejection. The membrane is recommended for feed water with TDS up to 2500 mg/L* and can also be applied in systems with elevated nitrate and silicate levels in the feed water.
Ecosoft HR membranes are manufactured using technology that supports long-term and reliable system operation. This membrane is suited for commercial applications including car washes, glass production, household and industrial chemicals, chemical enterprises, laboratories, and distilled water preparation.
The main advantage of the HR series membranes is efficient operation at low pressure while maintaining high salt rejection and permeate flow, allowing the use of less powerful pumps. They can also be used with feed water containing elevated nitrate and silicate levels.
*For Ecosoft RO systems operating at 75% recovery and feed water temperature ofK 12°C, feed water TDS of 2500 mg/L typically corresponds to permeate TDS of approximately 100 mg/L.
KEY FEATURES
- Permeate flow rate up to 11.2 m³/day
- High salt rejection at low operating pressure
- Up to 99.3% salt rejection
- Recommended for feed water TDS up to 2500 mg/L
- Designed for commercial reverse osmosis systems
- Suitable for car washes, laboratories, chemical enterprises and distilled water preparation
TECHNICAL SPECIFICATION
* Permeate flow for a single element may vary by ±15% from the stated value.
** Permeate flow and salt rejection are based on standard test conditions: 1500 mg/L NaCl, 25°C, 15% permeate yield, and 10.3 bar applied pressure.
WATER SOURCE REQUIREMENTS
Before start-up, make sure the membrane is properly prepared for operation. Check membrane pretreatment, membrane element installation, instrument calibration, and overall system condition.
Avoid major pressure surges and flow fluctuations inside the spiral-wound elements during start-up, shutdown, cleaning, and other service procedures, as they may damage the membrane.
During launch, it is recommended to gradually switch the system from standstill to operational mode by following these steps:
- Gradually increase feed water pressure during 30–60 seconds,
- Bring the system to operating flow gradually during 15–20 seconds,
- Permeate produced during the first hour of operation should be discharged.
Keep the membrane wet after initial wetting.
To prevent biofouling during extended shutdowns, store the membrane elements in a preservative solution. The pressure drop across the full length of the housing must not exceed 3.4 bar.
